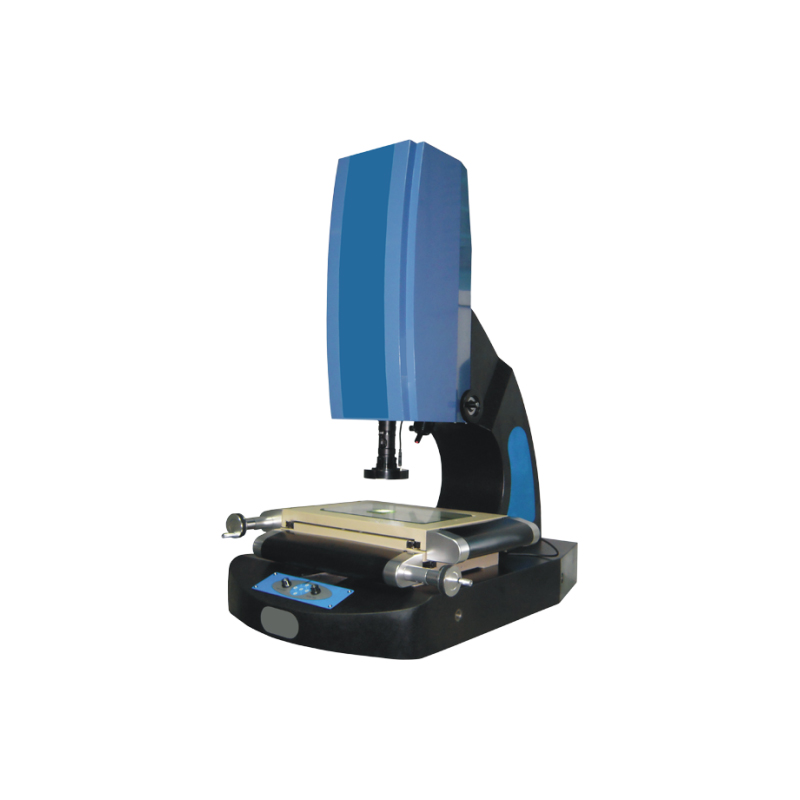

XYZ Advanced Manual Video Measuring Machine LV25 Serial Ergonomic Shape

Model Number : LV25-2515

Place of Origin : China

MOQ : 1pc

Delivery Time : 20-50 days

Packaging Details : Wooden cases

Metal Table Size : 450x280mm.

Glass Table Size : 306x196mm

X,Y axis travel : 250x150mm.

Z axis travel : 150mm

Contact Now

XYZ Advanced Manual LV25 serial Advanced Video Measuring Machine

XYZ Advanced Manual Video Measuring Machine
· Ergonomic Shape with granite Pillar

· Adjustable 4 division LED Illuminator

· Light control by panel & software

· Leaser assisted positioning system

· Advanced measuring software

SPECIFICATION LV25-2515 LV25-3020 LV25-4030
Metal Table Size 450x280mm. 510x290mm 606x466mm.
Glass Table Size 306x196mm 350x280mm. 450x350mm.
X,Y axis travel 250x150mm. 300x200mm. 400x300mm.
Z axis travel 150mm 150mm 150mm
Resolution 0.0005mm. 0.0005mm. 0.0005mm.
X,Y axis accuracy <(3+L /200mm)µ m <(3+L /200mm)µ m <(3+L /200mm)µ m
Measuring Software QM 2.0 QM 2.0 QM 2.0
Net Weight 120kg. 200kg. 240kg.
Dimension (mm) 700x600x900 770x590x1000 950x700x1100

XYZ Advanced Manual Video Measuring Machine LV25 Serial Ergonomic Shape
